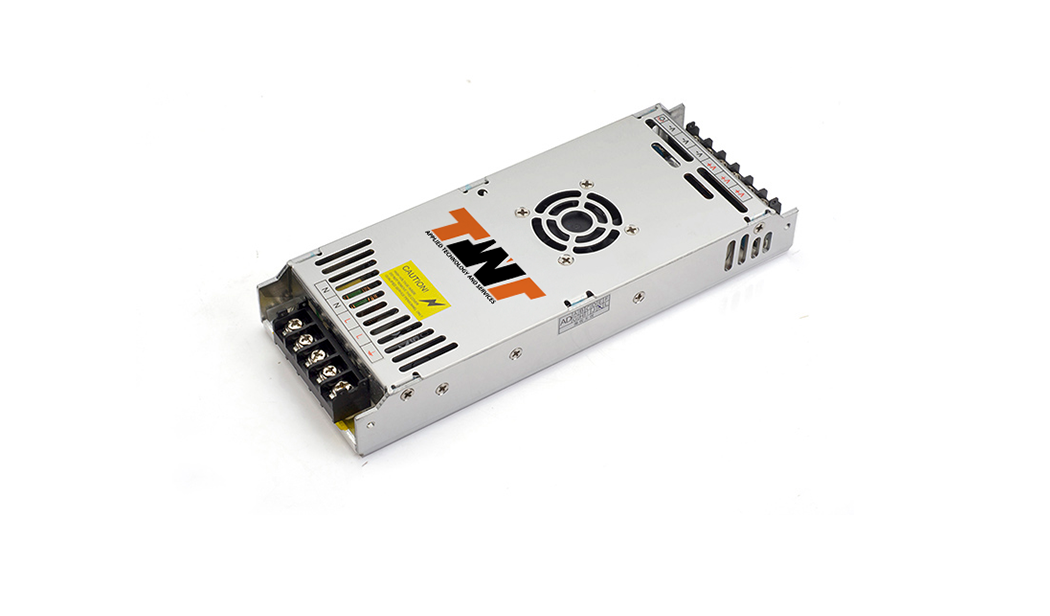

LED POWER SUPPLY

Model: TW-300V5

INTRODUCTION

Model TW-300V5 is a high-performance LED Power Supply System designed to deliver stable and reliable 5V / 60A output for demanding LED applications. It ensures consistent operation and long service life across a wide range of lighting systems.
With a wide input voltage range and built-in protection features, the TW-300V5 operates reliably even under unstable power conditions. Its robust design, wide operating temperature range, and compliance with international safety standards make it an ideal solution for industrial, commercial, and outdoor LED installations.

Specifications

Output Voltage / Current

5VDC / 60A

Inrush Current

60A max. @ 230VAC (cold start)

Rise Time

50ms (typical)

Input Voltage Range

176 – 264VAC

Line Regulation

≤ 0.5%

Hold-up Time

20ms @ full load

Input Frequency

47 – 63Hz

Overload Protection

110% – 140%, auto shutdown, recovers after restart

Dielectric Strength

I/P–O/P: 3KVAC; I/P–FG: 1.5KVAC; O/P–FG: 0.5KVAC (1 min)
