Product Main Specification

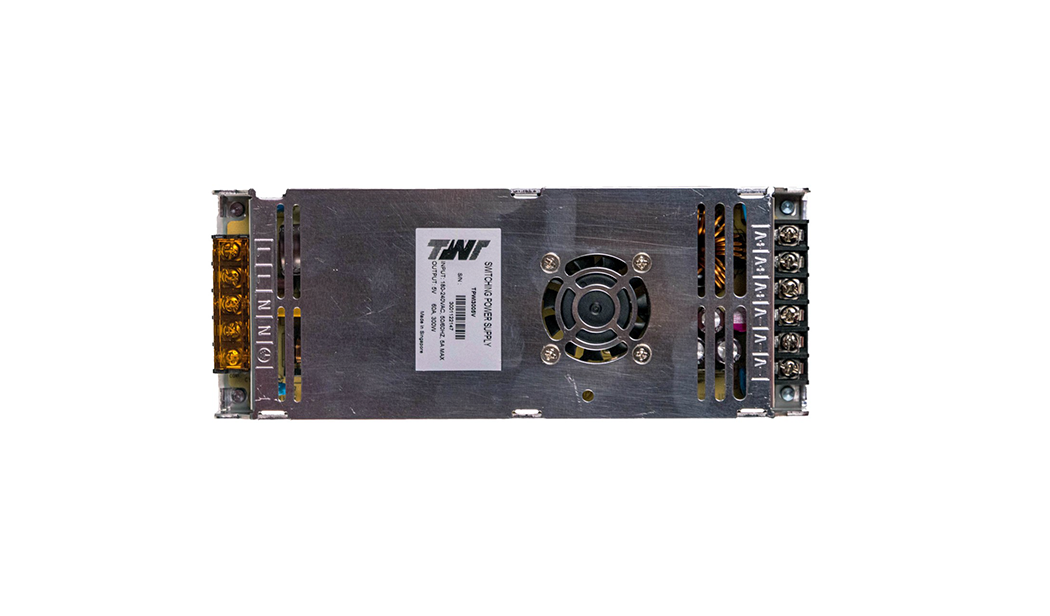

Model: TW300V5
INTRODUCTION
The power supply has the characteristics of small volume, high efficiency, stable operation and high reliability. The power supply has input under-voltage, output current limiting, output short circuit and so on. The synchronous rectifier circuit greatly improves the efficiency of the power supply and saves energy consumption.
Specifications
1. Input Character
Rated Voltage Range
150-264 Vac
Efficiency factor
≥0.45
Input Frequency Range
47-63 Hz
Max input current
≤3.5A
Efficiency
≥ 85.0%
Dash Current
≤ 120A
2. Output Character
Output Voltage Rating
+5.0 Vdc
Load regulation
±2%
Output Current Range
0—60.0A
Voltage stability accurary
±2%
Output voltage range
±2%
Output ripple and noise
≤150 mVp-p
