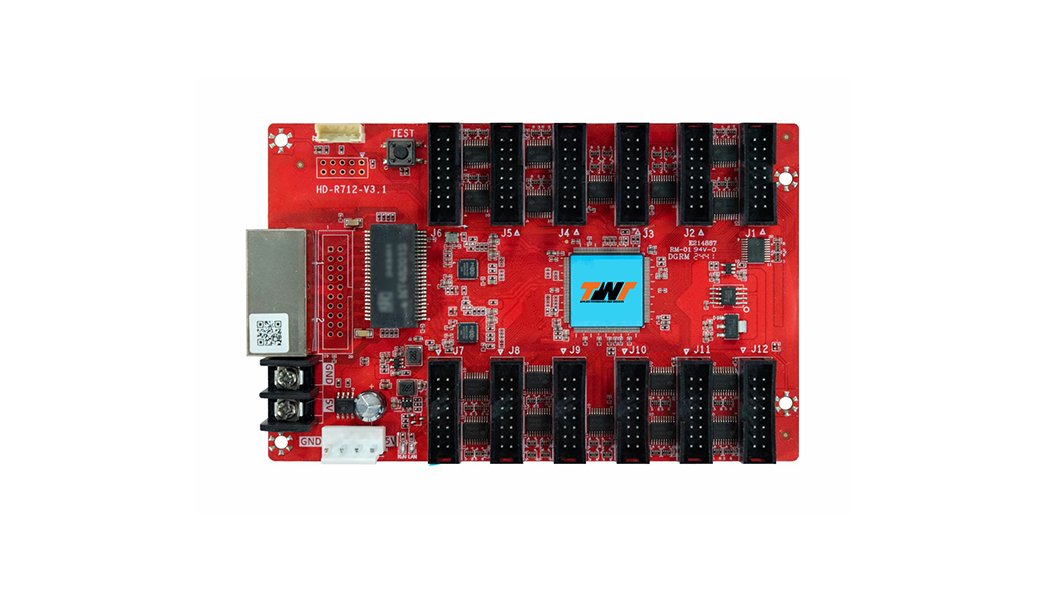

RECEIVING CARD
Model: TW-RV12
INTRODUCTION
The TW-RV12 is a high-performance LED receiving card designed as a core component in modern LED display control systems. It functions as a signal processing unit that receives data from the sending card and converts it into precise control signals for LED modules, ensuring accurate image reproduction and synchronized display performance.
Specifications
Control Range
Max load: 262,144 pixels (512 × 512)
Test Function
Built-in display test function on receiving card
Recommended Load
Standard IC: 128 × 1024 pixels; PWM IC: 256 × 1024 pixels
Interfaces / Ports
DC 5V Power ×2; Gigabit Ethernet ×2; HUB75E ×12
Grayscale
256 ~ 65,536 levels
Input Voltage
4.0V – 5.5V
