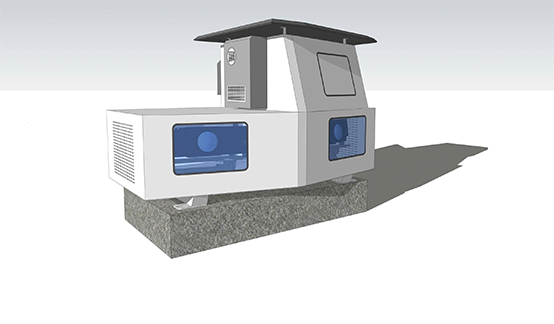

Outdoor Projector Enclosure
Model: TW-PJH3-E
Introduction
Outdoor Projector Enclosures are the perfect solution for safeguarding your projector in outdoor environments. They ensure optimal performance and longevity even in harsh weather conditions.
Main features
-
A minimum of 2 and a maximum of 3 compartments for projectors, each with dimensions ≥ 650 x 185 x 440 mm
-
Integrated air conditioning system, with features for remote temperature control and monitoring via IP, RS232, or RS485
-
Surge protection system
-
Integrated projector mounting brackets, adjustable for tilt and swivel angles to meet projection requirements
-
Integrated speaker mounting brackets
-
Integrated air conditioning controller, programmable for temperature control based on predefined scenarios
Specifications
Model
TW-PJH3-E
Control Interface
Remote temperature monitoring and control via IP / RS232 / RS485
Enclosure Capacity
Minimum 2, maximum 3 projector compartments
Power Supply
AC 220V – 240V, 50/60Hz
Compartment Size
≥ 650 mm (W) x 185 mm (H) x 440 mm (D)
Protection Rating
Optional IP-rated protection for dust and moisture (e.g., IP54)
