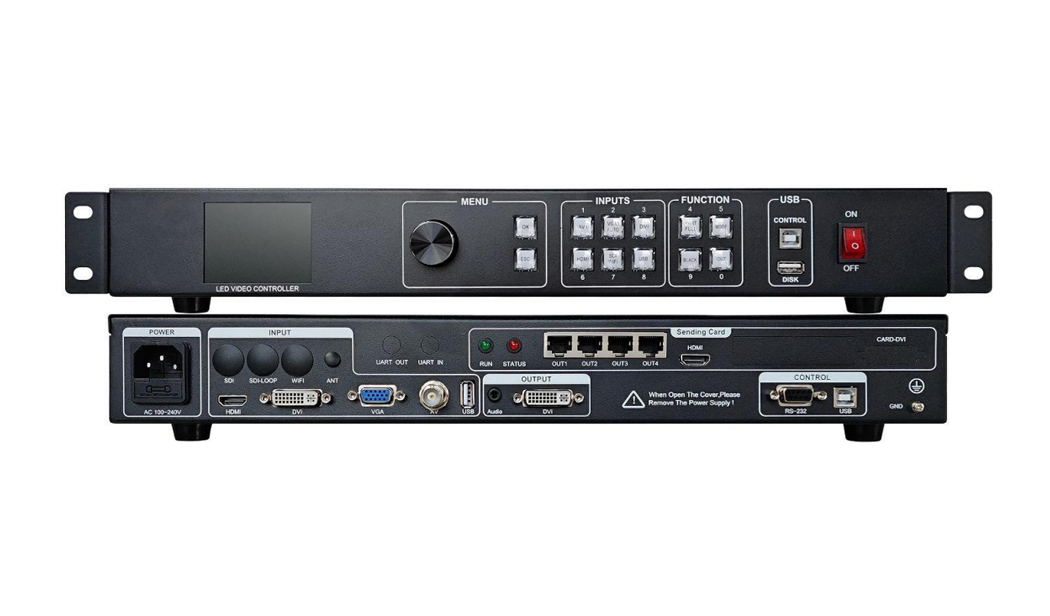

LED VIDEO PROCESSOR_TWV4

Features

• Support USB Player

• Support Audio Sync Output

• Seamlessly Switch Any Channel

• Signal Detection Function

• Maximum Output Resolution: 1920*1080@60Hz, 1920*1280@60Hz

• 5-Channel Digital-Analog Video Input: 1 HDMI, 1 DVI, 1 VGA, 1 AV, 1 USB (Optional: 1 WIFI, 1 SDI)

• 4*RJ45 Gigabit Ethernet Ports

• 1-Channel Digital Video Output: 1 DVI

• Quick Knob Adjustment Settings

• One Key Black Or Freeze

• 10 Mode Saved And Recalled

FUNCTION INTRODUCTION

• Multiple Video Input — TWV4 series uses 5 channels of video input, including 1 composite video AV (CVBS), 1 channel VGA, 1 channel DVI, 1 channel HDMI, 1 channel USB. Basically, the needs for civil and industrial use have been covered. Seamless switching of all video input.

• Video Output Interface — TWV4 series has 1 DVI video output, the port can videos programmed output to LED sending card or display. and has 4 RJ45 network port. The network port is the built-in the Sending Card (TWT·MSD600 or Linsn·TS902 or Huidu·T902) output port.

• Seamless Switching Of Any Channel — TWV4 series Video Controller can

  also seamlessly switch between any channels, switch quickly.

• Output Resolution — TWV4 series has designed a number of practical output resolutions for users. The widest is 1920 points, the highest is 1280 points. Applicable to a variety of dot matrix displays. Up to 10 output resolutions are available for user selection and can be adjusted point-to- point output.

• Support Audio Sync Output — TWV4 series has 1 channel audio output,

  audio and video synchronized output.

• One Key Black Or Freeze — TWV4 series has BLACK features, after setting, press the BLACK button directly to achieve black screen or screen freeze.

• Key Lock Function — TWV4 series has key lock function,open Keypad lock , during use,can effectively prevent misuse and other situations,provides a favorable guarantee for the use of the process.

• Mode Saved And Recalled — TWV4 series adopts 10 sets of user presets. Each set of user presets can store all user setting parameters, and can realize parameter backup and on-site calling functions (required to enter system menu enable).

• Unique Brightness Adjustment Technology — TWV4 series has a built-in unique brightness adjustment function, which solves the problem of loss of layering after reducing the brightness, making the color reproduction more realistic.

• Real-time Storage Technology — The ready-to-use technology solves the user's cumbersome setup and manual storage process, that is, the user does not need to perform manual save operation after adjusting or adjusting parameters. TWV4 series automatically stores the user parameters in the EEPROM, even after the power is turned off, The previous parameters remain in the device.

• ACC ACM Image Filtering — TWV4 series uses ACC and ACM image filtering engines. When processing each color, the nonlinear filtering effect minimizes image loss and restores color realism.
